6 Note Low Tenor Plain Wire to Bichord Bass Note Conversion
 Return to PTOOLS Home Page

These videos below will demonstrate how converting low tensioned high inharmonicity plain wires to properly designed bichord bass strings will correct tension and inharmonicity so that the 4:2 and 6:3 octave tests will more or less agree with each other. We apologize for the redundancy and occasional blabbering within the presentation. Video length +- 18 minutes

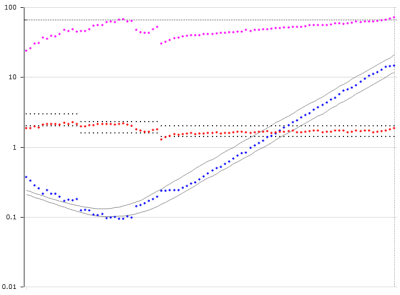

Tension (red) and Inharmonicity (blue)

Tension (red) and Inharmonicity (blue)

The above two graphs are before (left) and after (right) scales of a popular Japanese Manufacturer. The left scale is the "Economy Model" circa 2000 to 2004. In 2010 we converted the bottom 6 plain wire notes to bichord bass notes as represented in the graph on the right. We would have liked to make the tensions higher but kept them a little low due to the plate design.

If the videos do note load correctly right click and save to a download and launch from your computer. The .mov is bigger and of slightly better quality.

174 Megs

50 megs

Note: The octaves in the above videos were tuned using the 4:2 octave test. The noisy upper partials to which I keep refering are actually the 6th partial of the lower note colliding with the 3rd partial of the top note.

White Paper: Yamaha GA1 Low Tenor 6 Note Bichord Bass Retrofit
